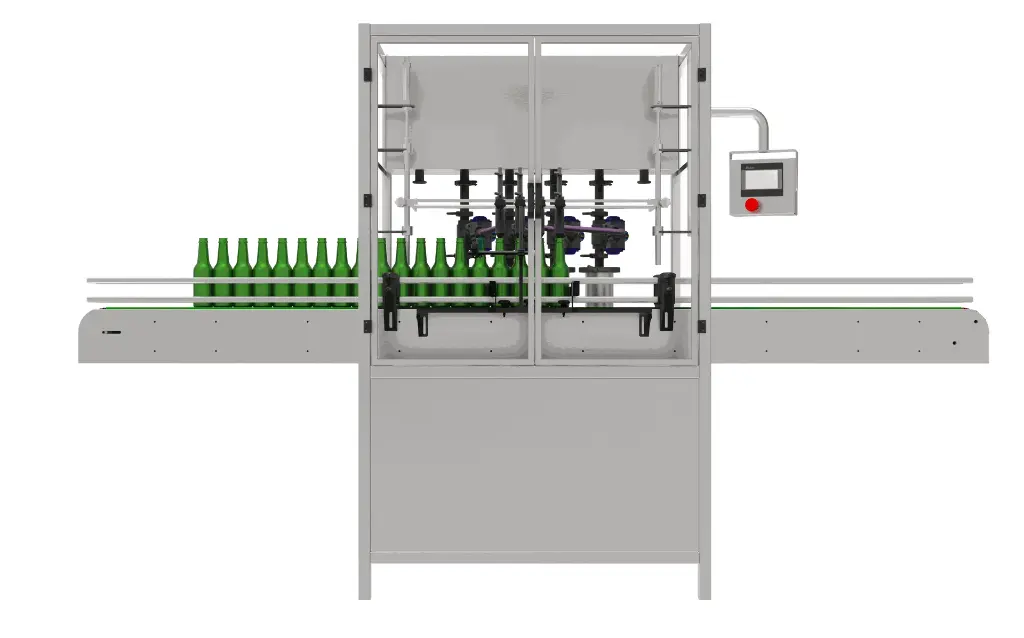

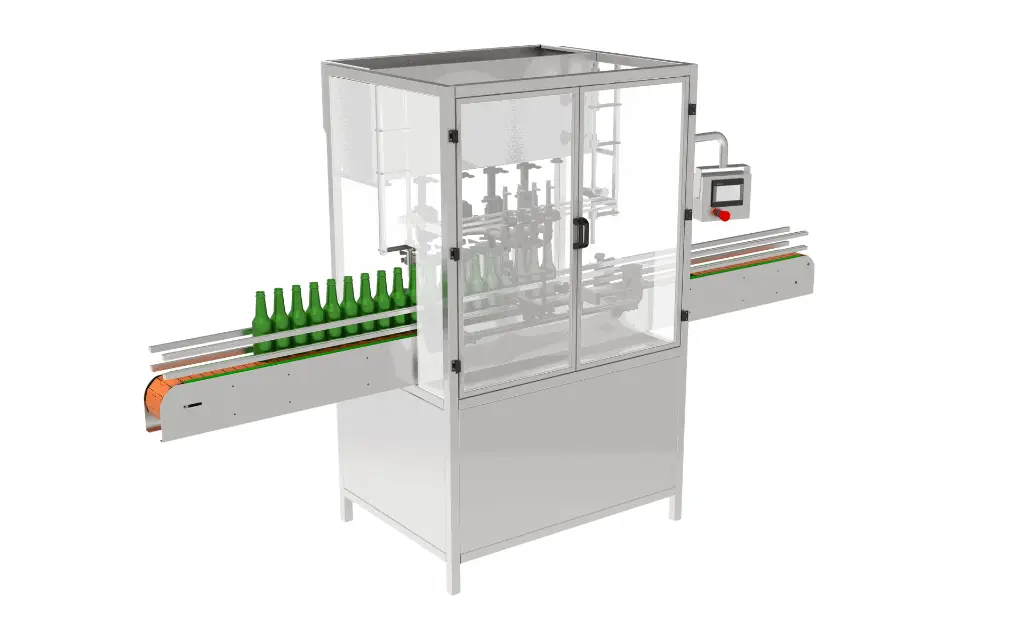

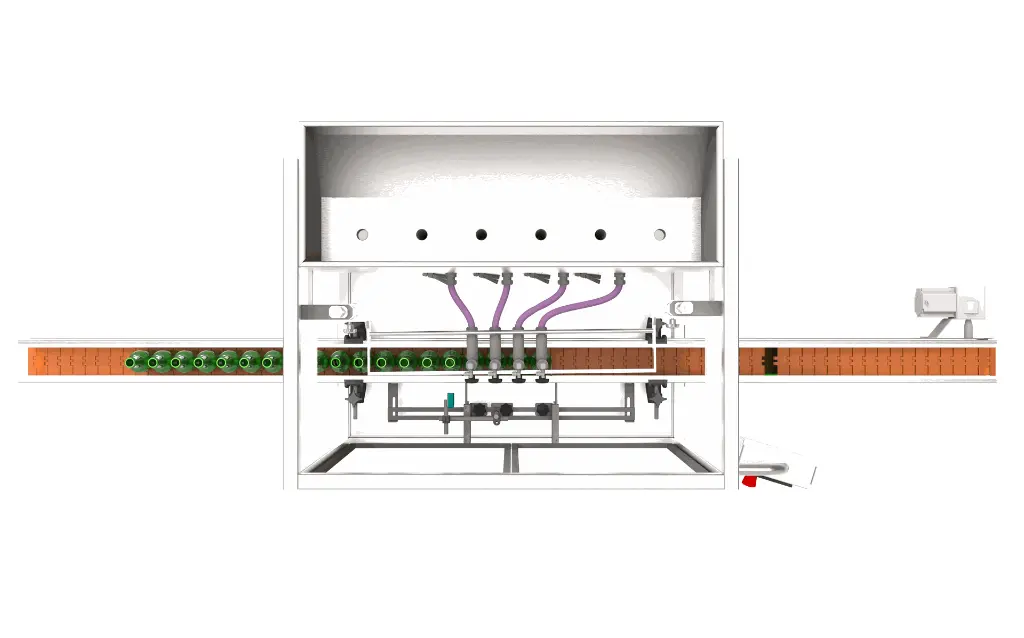

Automatic Volumetric filling machine 4 nozzles

https://www.somey.mx/web/image/product.template/25/image_1920?unique=e62d712

Robust and versatile equipment for dosing liquid products of medium and high viscosity in different presentations.

Production: Medium / High

$ 0.00 0.0 MXN $ 0.00 Tax Excluded

$ 0.00 Tax Excluded

This combination does not exist.

Viscosos
Contact Us

Share

Redes sociales

Technical sheetTechnical information

Technical information

Model:

VOLMA_-_

Dimensions of 2 and 4 heads

3.2 x 2.2 x 1.5 m

Dimensions of 8 and 10 Heads

5 x 2.2 x 1.6M

Filling speed according to nozzles

2 (10-16 bottles per minute)

4 (16-24 bottles per minute)

8 (32-40 bottles per minute)

10 (40-60 bottles per minute)

Filling capacity

100mL to 1 L

Electrical specifications

220VAC 3F 60 Hz

Pneumatic specifications

6 bar

Material

Stainless Steel 304

Approximate weight 2 and 4 heads

380 KG

Approximate weight of 8 and 10 heads

600 KG



*Filling speeds depend on the viscosity of the product and the volume to be packaged.

Technical sheet

 Download the technical sheet

Download file
